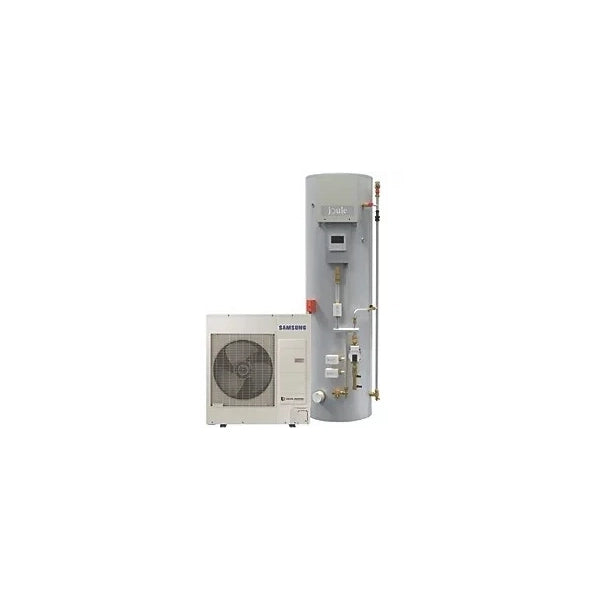

Joule Samsung 6.37kW Air Source Heat Pump & 250L Kodiak Cylinder

Name: Joule Samsung 6.37kW Air Source Heat Pump & 250L Kodiak Cylinder
Brand: Samsung
SKU: HXSM-G6-K2181
Price: 5300.00 GBP
Availability: InStock

Samsung

£5,300.00 inc. VAT

Payment details

Joule Samsung 8kW Monobloc Air Source Heat Pump with 6.37kW Heating & 250L 4 Zone Kodiak Standard Cylinder

The Joule Samsung 8kW Monobloc Air Source Heat Pump combined with the Joule Kodiak 250L 4 Zone Pre-Plumbed Standard Cylinder delivers a high-performance, energy-efficient heating and hot water solution designed for modern UK homes. This compact, floor-standing system offers reliable year-round heating with precise 4-zone temperature control, quiet operation, and supports sustainable low-carbon living with smart technology integration.

Key Features

Powerful Heating: 8kW nominal summer output with 6.37kW winter heating capacity, featuring an efficient inverter-driven compressor.
4 Zone Pre-Plumbed Cylinder: The 250L Kodiak standard cylinder includes a patented modular zonal control manifold that manages four zones (1 hot water and 3 heating zones) for precise temperature regulation.
Eco-Friendly Refrigerant: Uses R32 refrigerant with low global warming potential.
Quiet Operation: Operates quietly at approximately 45 dB(A), minimising noise disturbance.
High Hot Water Temperature: Produces hot water up to 65°C, suitable for a range of heating systems including underfloor heating and radiators.
Compact Design: Floor-standing unit optimised for space-saving installation without compromising performance.
Smart Controls Compatible: Supports advanced Kodiak controller for easy remote management and energy optimisation across multiple zones.
Robust Warranty: 7 years warranty on the heat pump (when commissioned by Joule or a trained installer), 25 years on the cylinder body, and 2 years on parts.

Additional Components

Potable expansion vessel
1 inch Y strainer with isolation valve
28mm isolation valves and braided hoses
Kodiak multi-zone hydraulic controller
Anti-vibration fix-it feet (additional accessory recommended)
Recommended use of 20L concentrate heat pump fluid for optimal performance

Technical Specifications

Heat Pump Model	Samsung Monobloc 8kW (HHSM-G600008-1)
Heating Capacity	8 kW (summer output), 6.37 kW (winter output)
Refrigerant	R32 (low global warming potential, eco-friendly)
Sound Pressure Level	Approx. 45 dB(A)
Hot Water Temperature	Up to 65°C
Dimensions (HxWxD) - Heat Pump	998 mm x 940 mm x 330 mm
Cylinder Capacity	250 litres
Zoning	4 Zones - 1 Hot Water, 3 Heating Zones
Maximum Inlet Pressure	10 bar
Maximum Operating Pressure	7 bar
Operating Temperature Range	Heating mode down to -20°C
Warranty (Heat Pump)	7 years when commissioned by Joule or trained installer
Warranty (Cylinder Body)	25 years
Warranty (Parts)	2 years

This Joule Samsung 8kW Monobloc Air Source Heat Pump combined with the 250L 4 Zone Kodiak Standard Cylinder offers a reliable, quiet, and smart heating system ideal for modern UK homes requiring multi-zone temperature control with an emphasis on energy efficiency and sustainability.
