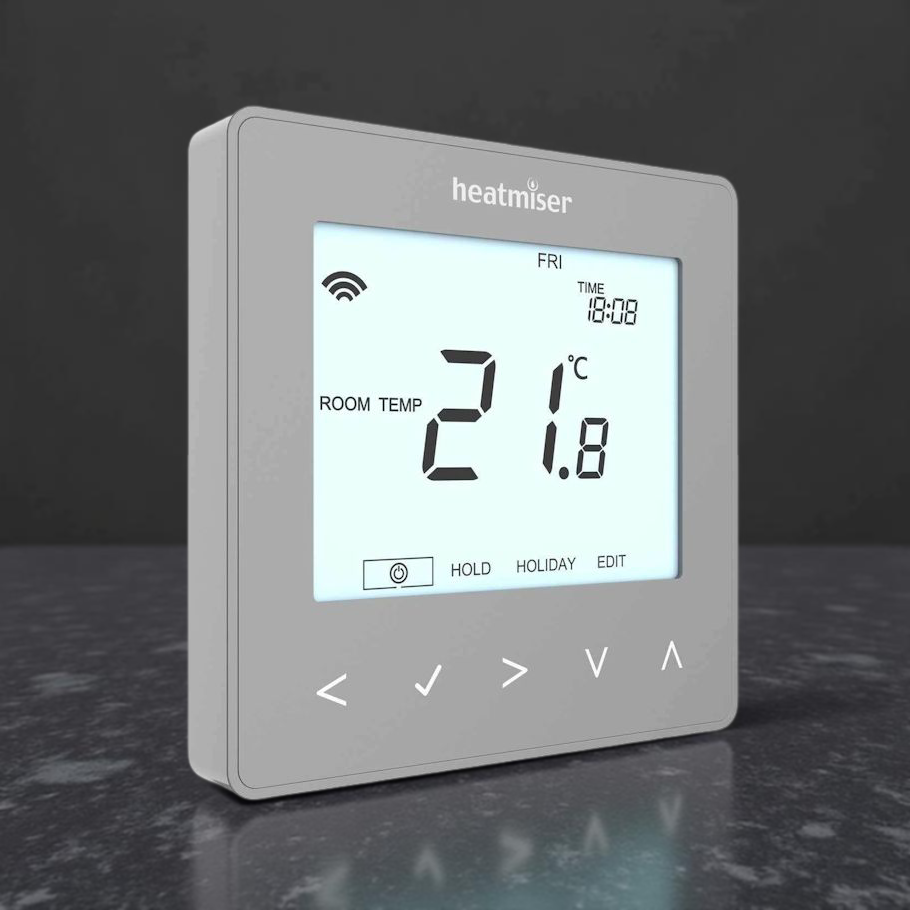

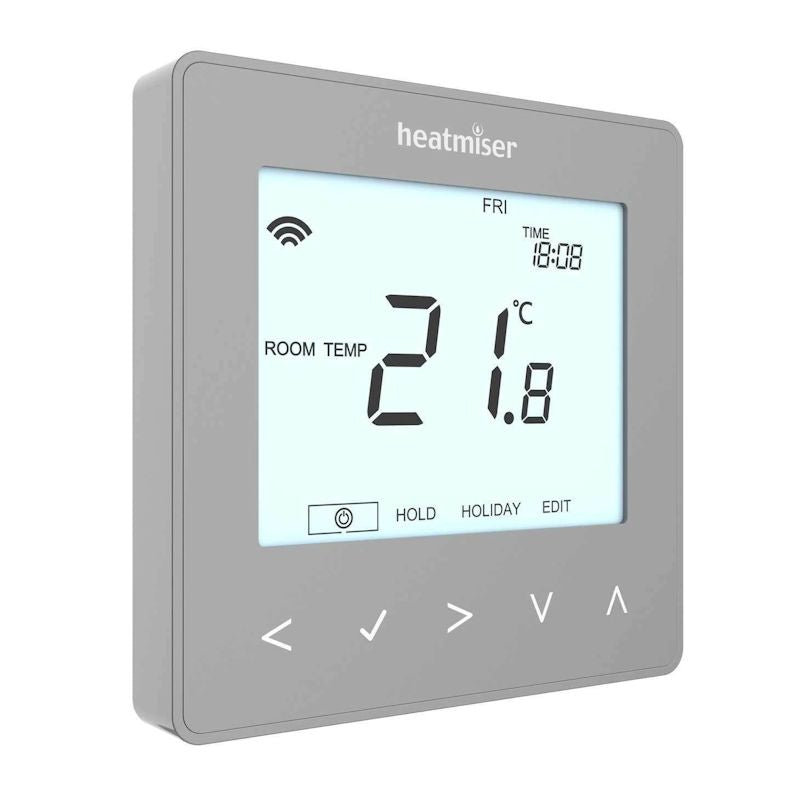

Heatmiser neoStat 12v V2 Programmable Thermostat Platinum Silver
Couldn't load pickup availability
Payment details
Heatmiser neoStat 12v V2 Programmable Thermostat Platinum Silver
The Heatmiser neoStat 12v V2 is a 12V DC powered, programmable smart thermostat designed for underfloor heating and general heating zones in multi-zone smart home systems. With mesh networking capabilities (when linked with a neoHub G2), the neoStat 12v V2 enables app, voice, and remote heating control, plus flexible timer mode for towel rails or lighting. It is compatible with the Heatmiser UH8-N 12V wiring centre, making it ideal for advanced zoned heating installations.
Key Features
- 12V DC powered (suitable for Heatmiser UH8-N wiring centre)
- Volt-free switching: ideal for a wide range of heating systems
- Flush mounting design, 85 x 85 x 13 mm
- Illuminated soft-touch keys with proximity sensor
- White backlight with automatic shut-off after 30 seconds
- User-selectable operating modes: Non-programmable, 5/2 day, 7 day, or 24 hour
- Configurable as thermostat or timer (for towel rails, lighting, etc.)
- 4 comfort levels per day (option for 6 with neoHub G2)
- 5-minute programming intervals for accurate scheduling
- Temperature hold and holiday facility
- Self-learning optimum start for efficient preheating
- Mesh networking: each unit acts as a signal repeater when used with neoHub G2
- Remote/app and voice control with neoHub G2
- Celsius/Fahrenheit selectable display and key code lock
- Frost protection for safety
- IP rating: IP30
- 2-year manufacturer’s warranty
Technical Specifications
| Supply Voltage | 12V DC |
| Relay Output | Volt-free switch, max 3A |
| Temperature Range | 5–35°C |
| Control Levels per Day | 4 (6 with neoHub G2) |
| Program Interval | 5 minutes |
| Mounting | Flush (requires standard back box) |
| Dimensions (W x H x D) | 85 x 85 x 13 mm |
| IP Rating | IP30 |
| Warranty | 2 years |
Applications
- 12V networked underfloor heating control (best with Heatmiser UH8-N)
- Multi-zone heating zones in smart homes or commercial projects
- Timer mode for towel rails or lighting
- Smart scheduling, remote/app, and voice control via neoHub G2
Box Contents
- Heatmiser neoStat 12v V2 Programmable Thermostat (colour as ordered)
- Mounting screws and fixings
- Quick start/installation guide
- Type Water Thermostats
- Vendor Heatmiser
- SKU neoStat 12v v2 - Platinum Silver
