Givenergy PV Protection - 800V - 20A - 1PH
Exc. VAT
Inc. VAT
Regular price
£235.00
(Inc. VAT)
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options

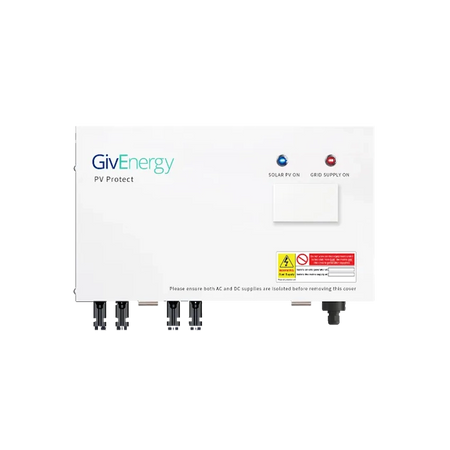

Givenergy PV Protection - 800V - 20A - 1PH
Key Features:
- Fireman's Switch Function: Quickly disconnects solar array DC power during emergencies for safe evacuation and firefighting.
- Automatic Operation: Disconnects PV supply automatically when the grid fails, enhancing safety and compliance.
- High Voltage Protection: Supports up to 800V DC and 20A current, suitable for most residential solar systems.
- Dual MPPT Input Compatible: Integrates with dual MPPT solar arrays seamlessly.
- Easy Installation: Compact DIN rail mount design with built-in automatic DC connector relay.
- Compliance: Fully compliant with SEAI (Sustainable Energy Authority of Ireland) safety standards.
- Warranty: 5-year manufacturer warranty for peace of mind.
Why Choose Givenergy PV Protection?
The Givenergy PV Protection is an essential safety device that acts as a critical fire safety isolator for solar PV systems. It ensures rapid disconnection of dangerous DC currents during emergencies or grid failure, protecting property and lives. Designed for easy integration and compliance, it is a must-have for safe, modern solar installations.
Technical Specifications:
| Part Number | GIV-PVPRO |
| Max DC Voltage | 800 V |
| Max Current | 20 A |
| Phase | Single Phase |
| Mounting | DIN Rail |
| Warranty | 5 Years |
- Type Fire Safety Devices
- Vendor GivEnergy
- SKU GIV-PVPRO
