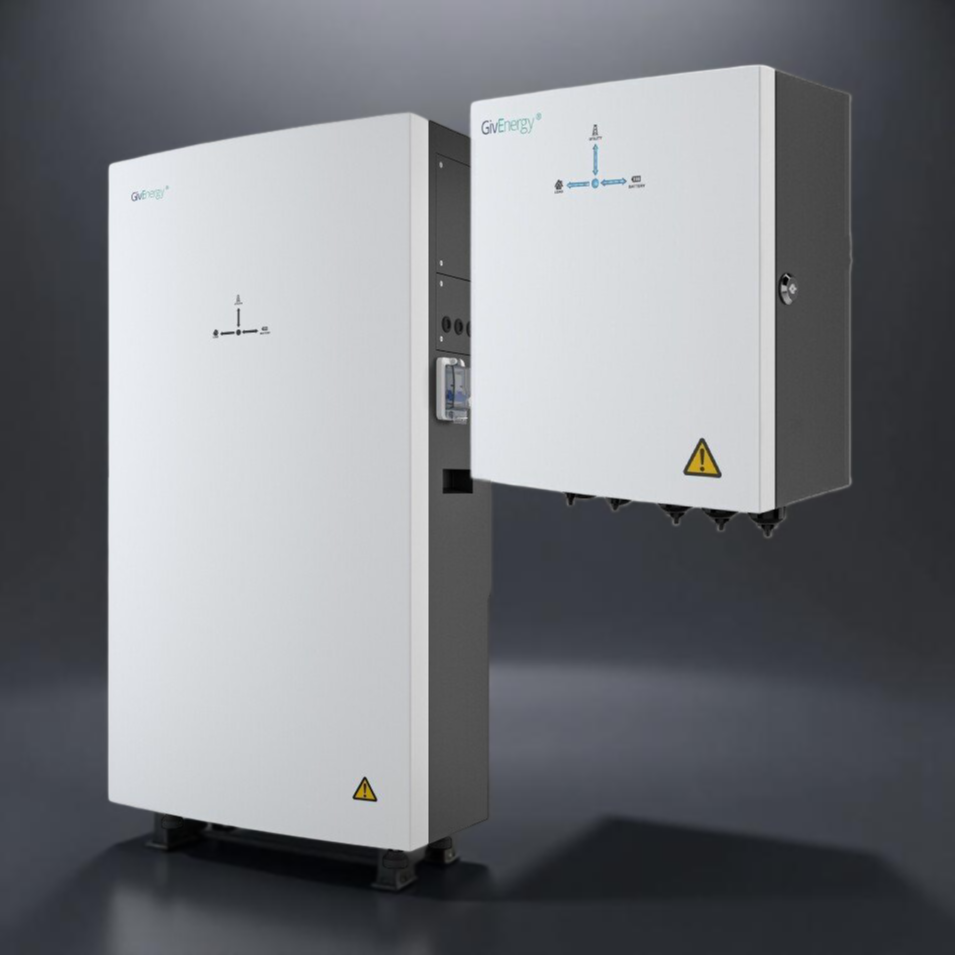

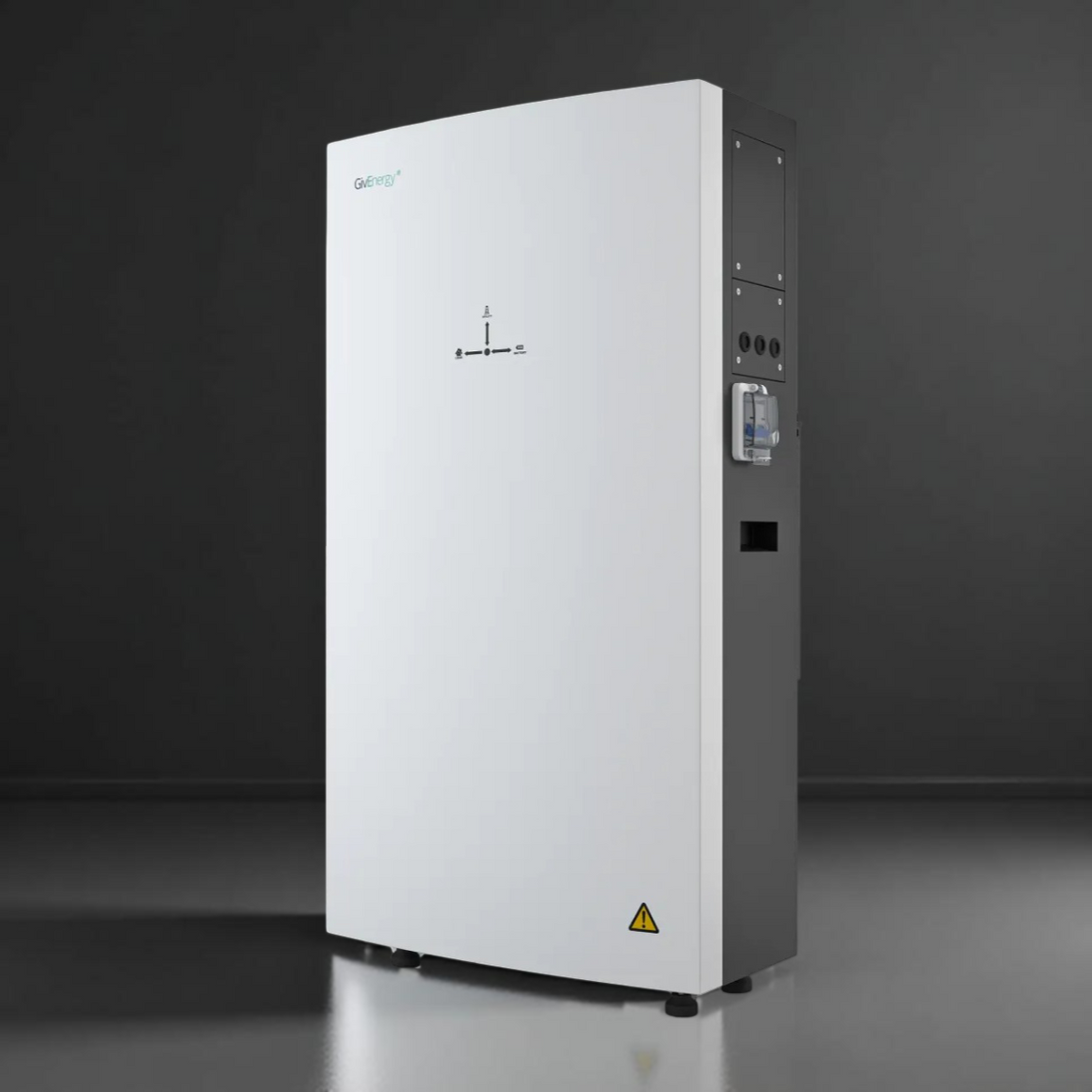

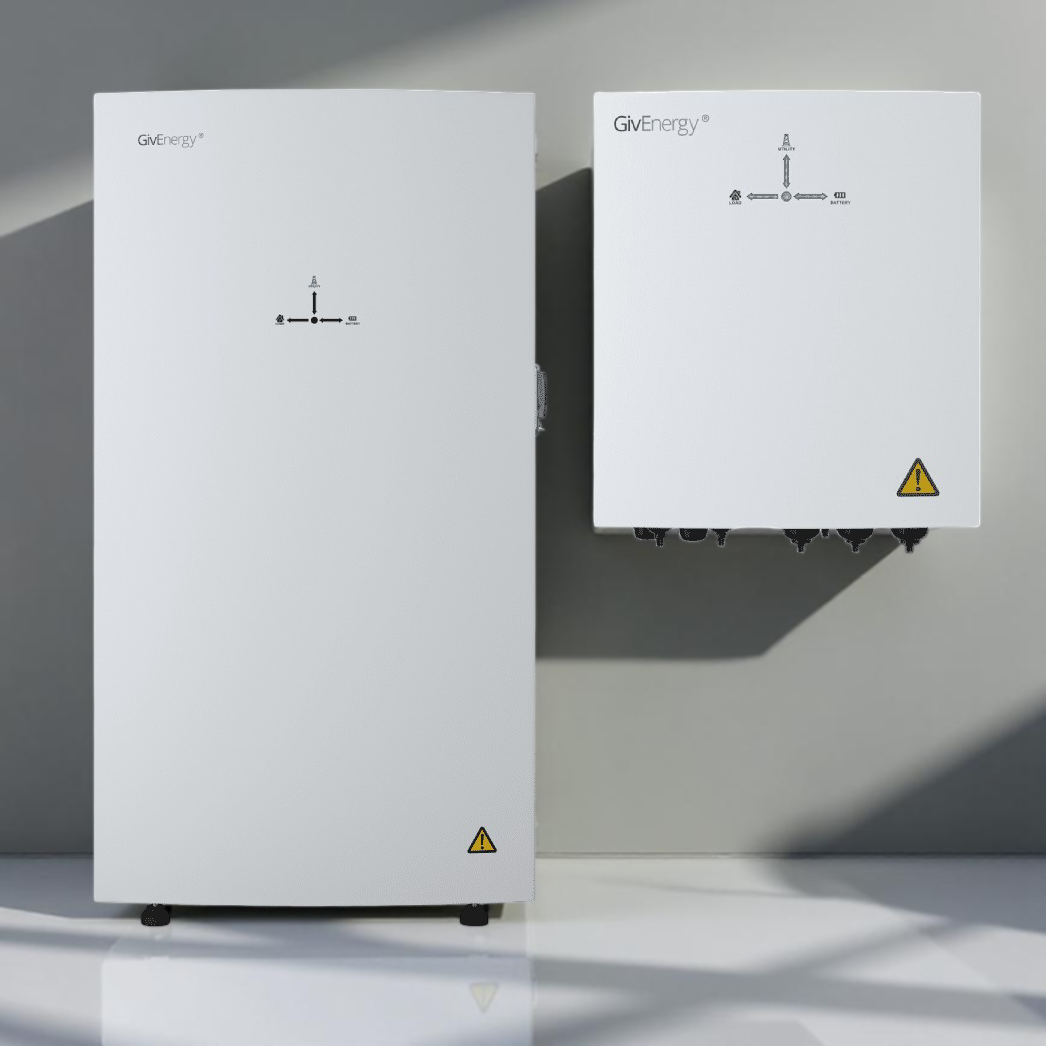

GivEnergy All In One 13.5kWh AC Coupled Battery and Gateway

GivEnergy All In One 13.5kWh AC Coupled Battery & Gateway

The GivEnergy All In One 13.5kWh AC Coupled Battery & Gateway is a premium, integrated energy storage and management solution for whole-home backup and smart energy control. Combining a high-capacity 13.5kWh LiFePO₄ battery with a powerful AC-coupled inverter and the Giv-Gateway, this system delivers seamless backup, grid services readiness, and flexible installation for both new and retrofit projects.

With modular battery packs, robust IP65 protection, and advanced connectivity (WiFi, LAN, 4G), the All In One is designed for reliability, efficiency, and future-proof energy management. The Gateway ensures rapid switchover (<20ms) for uninterrupted power during outages and allows for continued solar generation off-grid.

Key Features

• Battery Capacity: 13.5kWh usable (LiFePO₄)
• AC Output (Continuous): 6kW
• AC Output (Peak): 7.2kW (10s)
• On-grid Peak Power: 3.6kW (AIO 3.6 model)
• Off-grid Peak Power: 6kW
• Depth of Discharge: 100%
• Modular Design: 4 removable battery packs (expandable up to 6 units in parallel for up to 80kWh)
• Whole House Backup: Seamless UPS functionality with <20ms switchover
• Flexible Tariff Support: Charge/discharge on variable tariffs for maximum savings
• Grid Services Ready: Supports demand response and grid balancing
• Connectivity: WiFi, LAN, 4G, CAN communication
• Remote Monitoring: GivEnergy app and portal
• Ingress Protection: IP65 (indoor/outdoor)
• Warranty: 12 years (system & Gateway)

Technical Specifications

• Battery Nominal Voltage: 307V
• Battery Voltage Range: 260–346V
• Max Charge/Discharge Current: 25A
• AC Output Voltage: 230V (180–270V range)
• AC Output Current: 26A nominal, 32A max
• Operating Temperature: -10°C to +50°C
• Noise Emission: <30dB
• Dimensions (AIO): 1100 × 600 × 280 mm
• Weight (AIO): 173.7 kg
• Dimensions (Gateway): 410 × 370 × 190 mm
• Weight (Gateway): 12.75 kg
• EPS Switchover Time: <20ms
• Environmental Category: Outdoor/Indoor

Gateway Features

• Nominal AC Power: 18.4kW
• Max AC Current: 100A
• Pre-installed energy meter
• Built-in LoRa
• Grid services ready

Note: Professional installation and GivEnergy portal registration are required for full warranty and system commissioning. The system is suitable for both new installations and retrofits, and can be expanded for larger storage needs.
