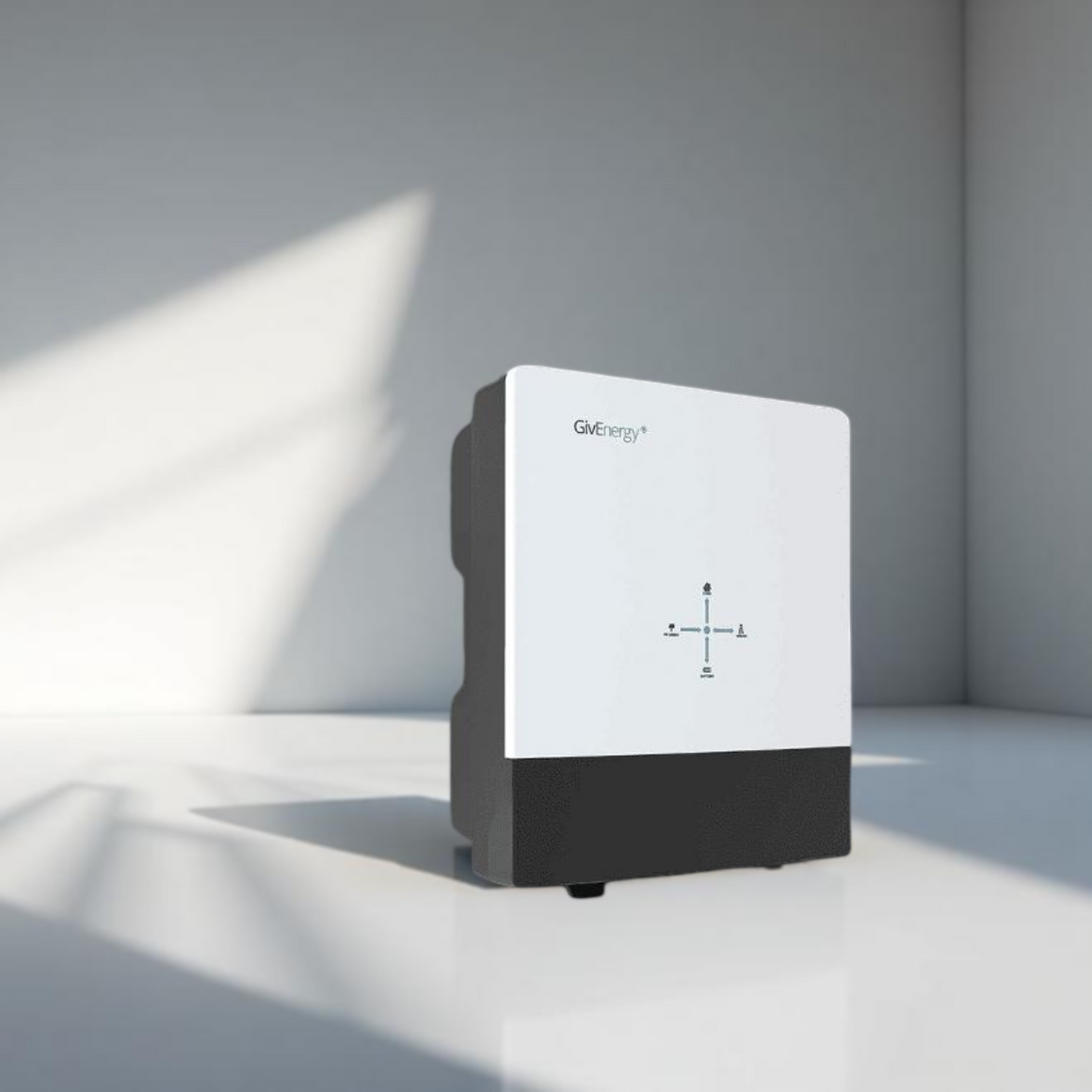

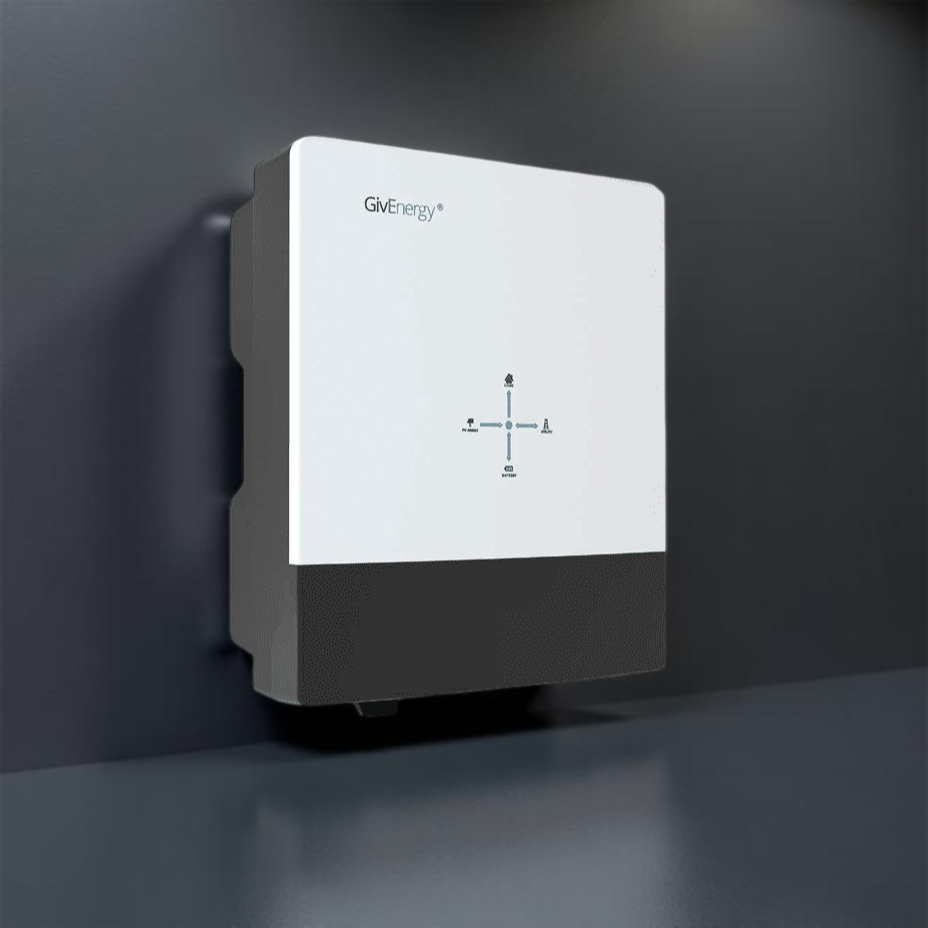

GivEnergy 1-Phase Hybrid Inverter 8.0kW HV 3rd Generation

GivEnergy 1PH Hybrid Inverter 8.0kW HV 3rd Generation

The GivEnergy 1PH Hybrid Inverter 8.0kW HV 3rd Generation is a high-capacity, single-phase hybrid inverter designed for advanced solar and battery storage integration. Ideal for larger residential and small commercial installations, this inverter manages both solar generation and high-voltage battery storage, maximising self-consumption and minimising grid reliance. It features in-built WiFi and LAN, flexible tariff management, and a robust 12-year warranty for peace of mind.

Key Features

• Nominal AC Output Power: 8,000W
• Max. Apparent Power Output to Grid: 10,000VA
• Max. PV Input Power: 12,000W
• MPPT Voltage Range: 90V – 550V
• Max. PV Voltage: 600V
• Start-up Voltage: 80V
• No. of MPPTs / Strings per MPPT: 2 / 2
• Max. Input Current (per string): 25A
• Max. Short Circuit Current (per string): 30A
• Battery Voltage Range: 120V – 510V
• Max. Charge/Discharge Power: 8,000W / 8,500W
• Charge/Discharge Current: 25A / 25A
• Battery Type: High Voltage LiFePO4 (GivEnergy HV Storage)
• AC Output: 230V, 50Hz, single phase
• Max. Output Current: 37A
• Pass-through Current: 50A
• Automatic Switch Time (EPS): 10ms
• THDv (Linear Load): <3%
• Max. Efficiency: 97.6%
• European Efficiency: 97%
• IP Rating: IP65 (indoor/outdoor)
• Weight: 36 kg
• Dimensions (HxDxW): 558 × 214 × 480 mm
• Communications: WiFi, LAN, CAN
• Warranty: 12 years

Note: Compatible only with GivEnergy high-voltage batteries (not LV range). Earth bonding kit now included. Professional installation and GivEnergy installer training are required for warranty and commissioning. GivEnergy portal login is required for full system setup.
EAN code is not listed in the available sources.
