45m² 4kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack

45m² 4kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack

Description:

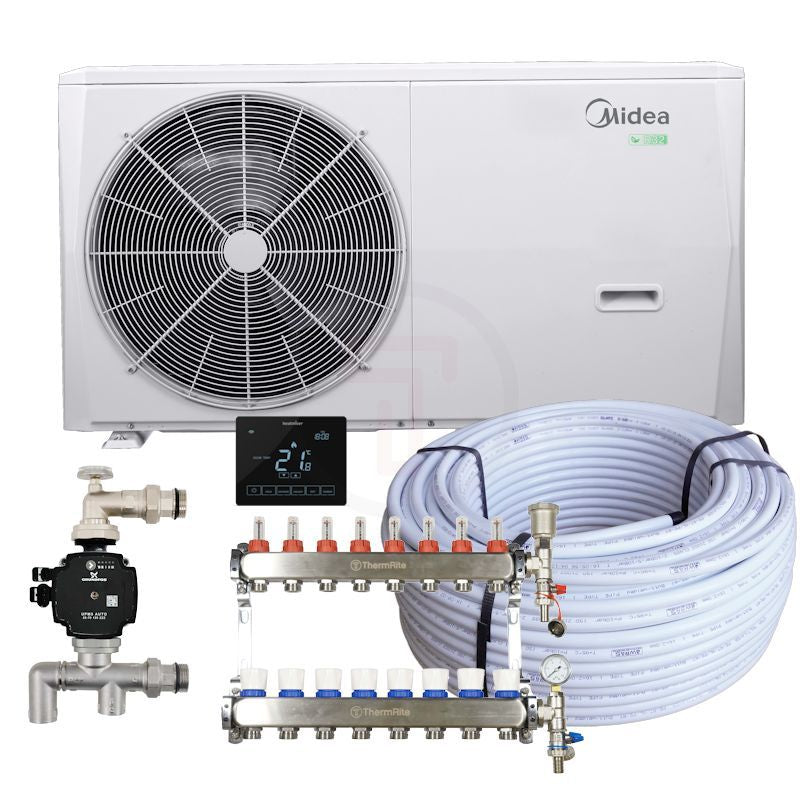

The ThermRite & Midea 45.0m² 4kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack offers an energy-efficient, all-in-one heating solution for well-insulated homes, new builds, and renovation projects adhering to UK modern insulation standards. This pack includes a high-performance Midea R32 monobloc heat pump, a multi-zone water underfloor heating system, and all necessary components for a professional installation. It delivers quiet, reliable heating and cooling with easy WiFi control for year-round comfort.

• Coverage: 45.0m² (pipe spacing: 150mm centre-to-centre)
• Application: Suitable for new builds or renovation projects with good insulation
• Pipe Layout: Custom CAD pipe layout supplied
• Complete Kit: Includes all primary components and installation hardware

Technical Information

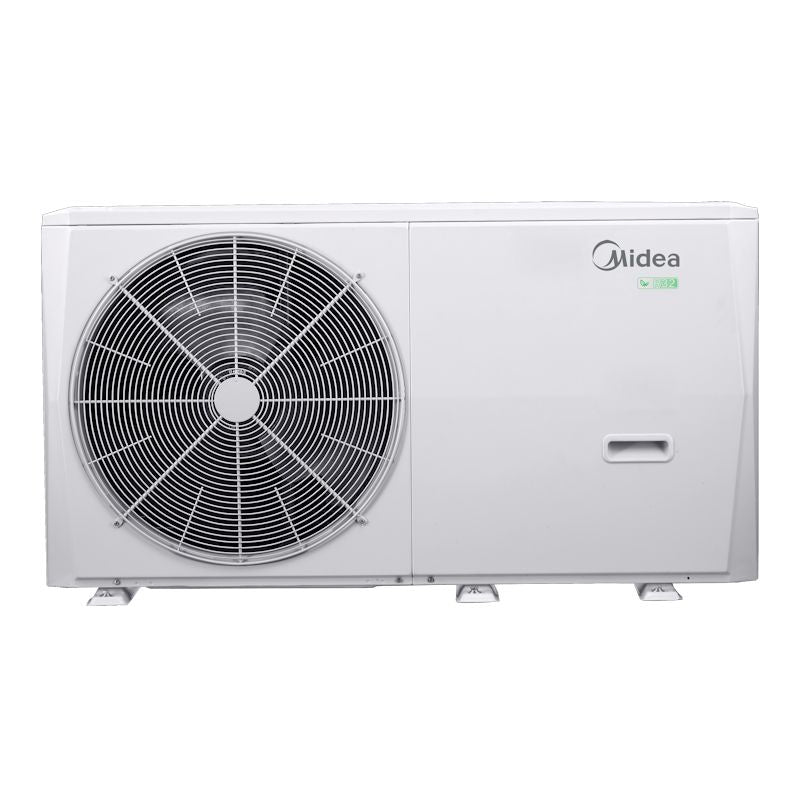

• Monobloc Heat Pump:
  • Midea R32 Monobloc, 4.0kW heating output
  • ErP efficiency rating: A+++ at 35°C flow temperature
  • Maximum sound power: up to 60dB(A), with a silent chamber reducing noise to 35dB(A) at 3m
  • Maximum outlet water temperature: 65°C
  • Continuous hot water supply up to 60°C; operates down to -20°C outdoor temperature
  • Effective heating down to ambient temperatures of -7°C
  • Variable speed DC inverter compressor, fan, and pump for precise temperature control
  • Integrated WiFi and app control; USB software upgrade capable
• Hydraulic Components:
  • 50 litre insulated buffer tank, mountable on wall or floor
  • Grundfos 25/7 circulation pump, complete with cable, valves, and washers
  • Flow meter/setter featuring flush and fill points with all necessary fittings
  • Installation accessories including hoses, buffer tank feet, glycol, and valves

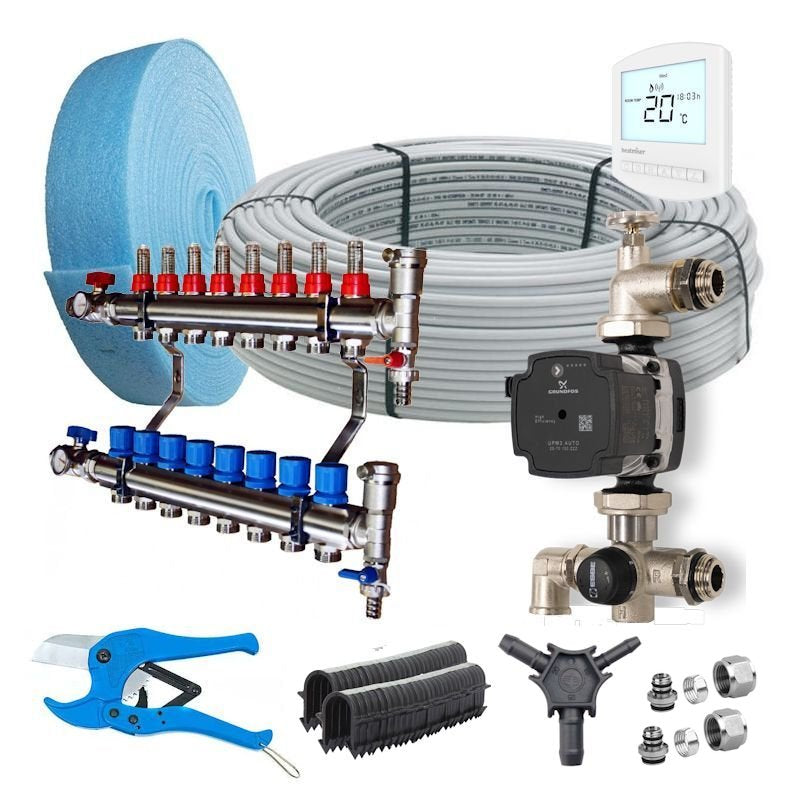

• Underfloor Heating System:
  • A-rated Grundfos 3-speed low-energy circulation pump
  • Two-port Dualmix manifold consisting of:
    • Manifold isolating valves
    • Temperature gauges
    • Lockshields with flow meters for each port
    • Drain/fill valves with blank caps
    • Automatic air vents
    • Metal fixing brackets
  • 16mm European standard 5-layer Pert-Al-Pert pipe, 300 metres
  • Pipe fixing clips, 300 units
  • Perimeter edge insulation roll, 50 metres
  • Pipe reaming tool and pipe cutter included
  • Pipe connector cores, 4 pieces
• Support and Documentation:
  • Detailed custom CAD pipe layout plan
  • Comprehensive installation manual

This combined pack is engineered specifically for properties built to modern UK insulation standards. For projects with differing insulation requirements, please contact us for tailored system design and sizing advice.
