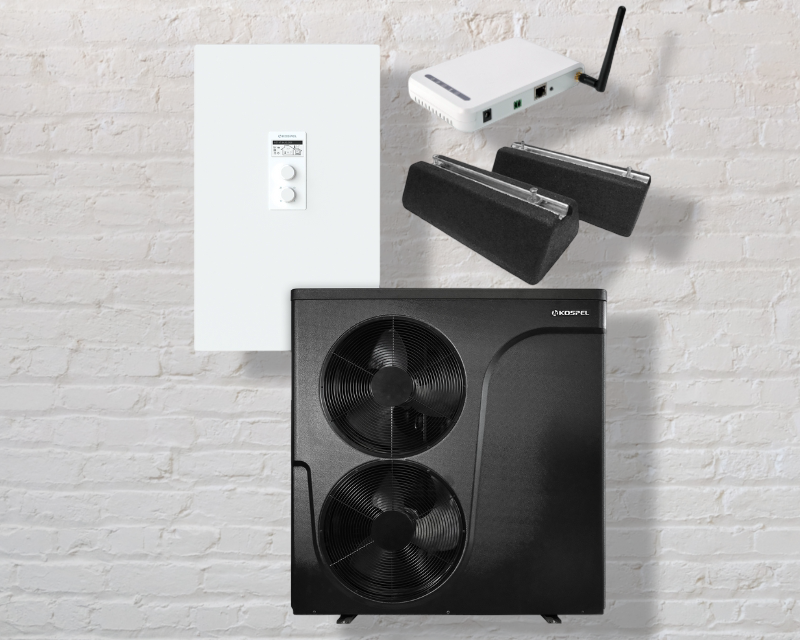

EHC 16/23kW ICONIC Air Source Heat Pump
Sale
Regular price
£5,600.00
inc. VAT
Sale price
£5,600.00
inc. VAT
Regular price
£5,700.00
Couldn't load pickup availability
Payment details
• Energy class: A+++ (35°C) / A++ (55°C)
• Power switchable from 16 to 23 kW from the indoor unit
• Wide operating range at -25°C to +43°C of outside air
• Quiet operation of the unit - 56 dB (A) from a distance of 1m
• Monobloc outdoor unit utilises an eco-friendly R32 refrigerant
• Indoor unit features an Electric Boost heating element with automatic power modulation up to 9kW
• High energy efficiency COP 4.42 (A7/W35)
• EVI injection system - high operating efficiency and water temperature up to 60°C
• Weather control for heating purposes
• Hourly, daily and weekly control cycle of the hot water circulation pump
• Management of 2 heating circuits (radiators + underfloor heating) and hot water circuit
• Condensate protection against freezing
• Power switchable from 16 to 23 kW from the indoor unit
• Wide operating range at -25°C to +43°C of outside air
• Quiet operation of the unit - 56 dB (A) from a distance of 1m
• Monobloc outdoor unit utilises an eco-friendly R32 refrigerant
• Indoor unit features an Electric Boost heating element with automatic power modulation up to 9kW
• High energy efficiency COP 4.42 (A7/W35)
• EVI injection system - high operating efficiency and water temperature up to 60°C
• Weather control for heating purposes
• Hourly, daily and weekly control cycle of the hot water circulation pump
• Management of 2 heating circuits (radiators + underfloor heating) and hot water circuit
• Condensate protection against freezing
Why Choose Iconic Air Heat Pumps?
Lower Energy Bills: Harness free ambient heat for cost-effective warmth.Award-Winning Design: Sleek, modern units enhance your home’s exterior.
Net-Zero Ready: Zero operational carbon emissions.
Boost Heating: Maintains comfort even in sub-zero temperatures.

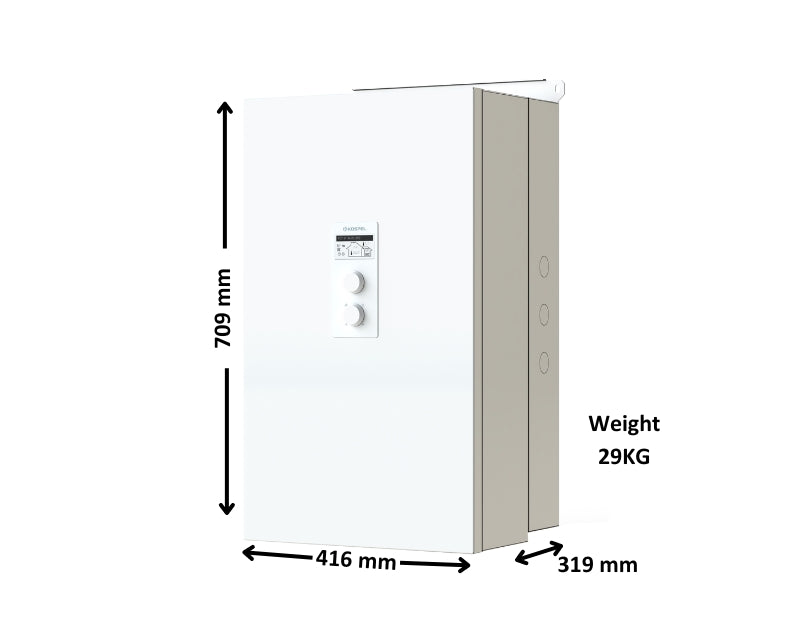

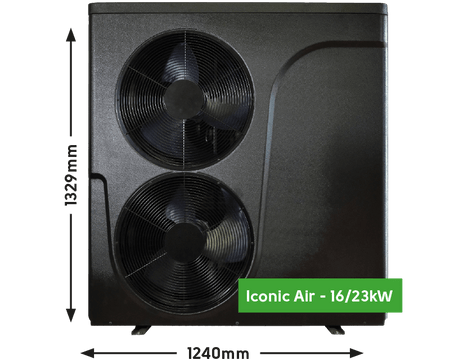

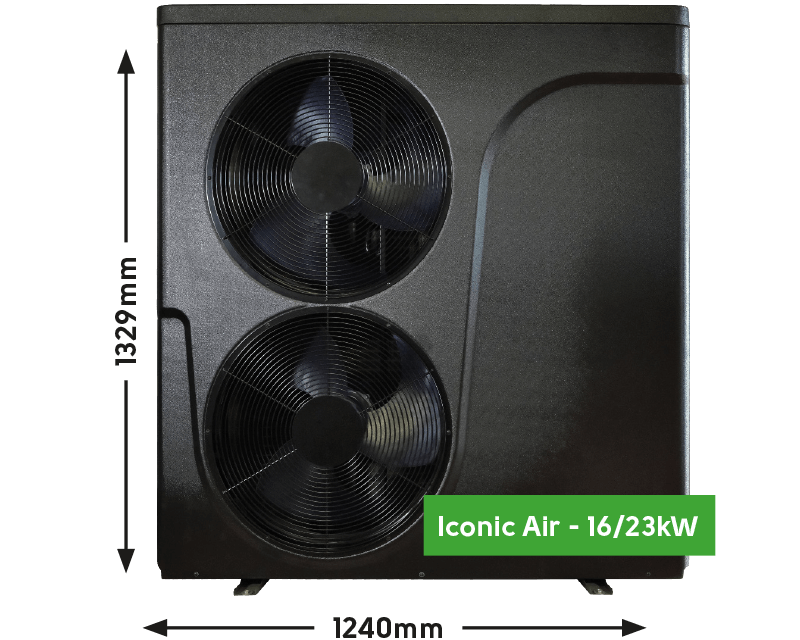

| Feature | Iconic Air - 8kW | Iconic Air - 12kW | Iconic Air - 16/23kW | Indoor Unit |
|---|---|---|---|---|
| Product Code |
AHP-IA8KW-KIT
|
AHP-IA12KW-KIT | AHP-IA23KW-KIT | N/A |
| Width (mm) | 1165 | 1280 | 1240 | 416 |
| Height (mm) | 795 | 928 | 1329 | 709 |
| Depth (mm) | 450 | 500 | 540 | 319 |
| Diameter (mm) | - | - | - | - |
| Weight (kg) | 90 | 132 | 160 | 29 |
- Type Air Source Heat Pumps
- Vendor EHC
- SKU AHP-IA23KW-KIT
