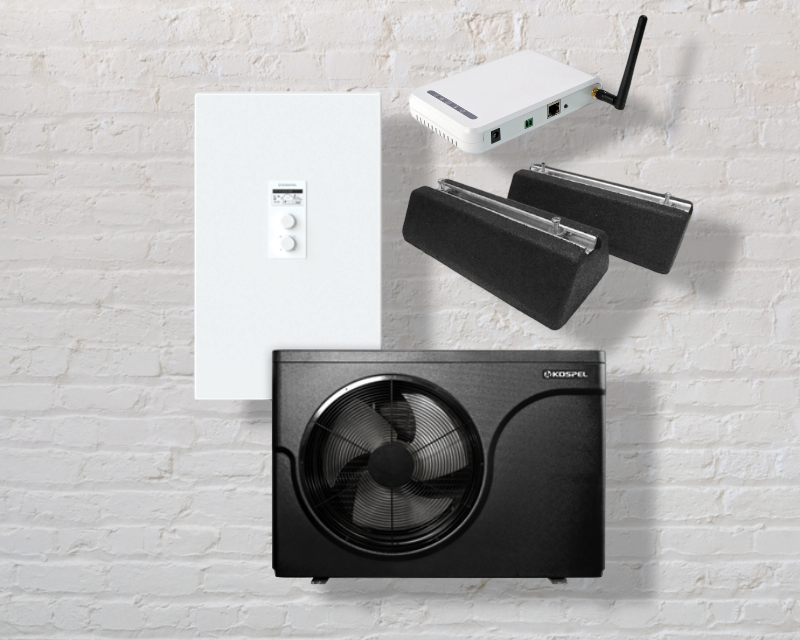

EHC 12kW ICONIC Air Source Heat Pump

Description

• Energy class: A+++ (35°C) / A++ (55°C)• Wide operating range at -25°C to +43°C of outside air• Quiet operation of the unit - 55 dB (A) from a distance of 1m• Monobloc outdoor unit utilises an eco-friendly R32 refrigerant• Indoor unit features an Electric Boost heating element with automatic power modulation up to 6kW• High energy efficiency COP 4.75 (A7/W35)• EVI injection system - high operating efficiency and water temperature up to 60°C• Weather control for heating purposes• Hourly, daily and weekly control cycle of the hot water circulation pump• Management of 2 heating circuits (radiators + underfloor heating) and hot water circuit Condensate protection against freezing

Why Choose Iconic Air Heat Pumps?

Lower Energy Bills: Harness free ambient heat for cost-effective warmth.

Award-Winning Design: Sleek, modern units enhance your home’s exterior.

Net-Zero Ready: Zero operational carbon emissions.

Boost Heating: Maintains comfort even in sub-zero temperatures.

Feature	Iconic Air - 8kW	Iconic Air - 12kW	Iconic Air - 16/23kW	Indoor Unit
Product Code	AHP-IA8KW-KIT	AHP-IA12KW-KIT	AHP-IA23KW-KIT	N/A

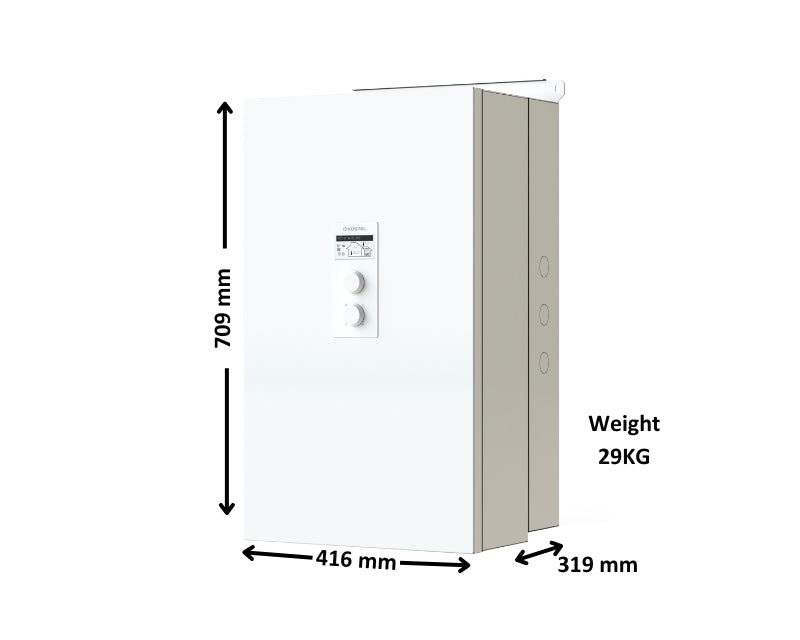

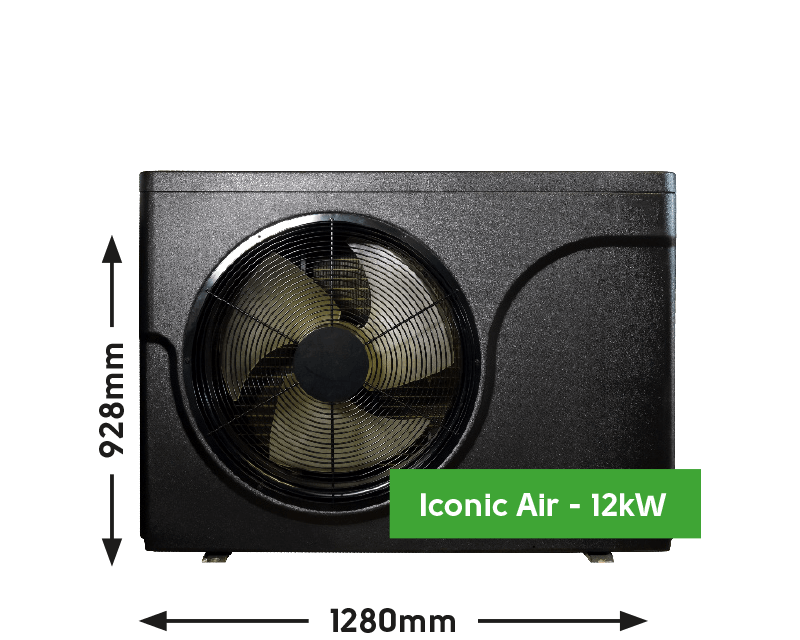

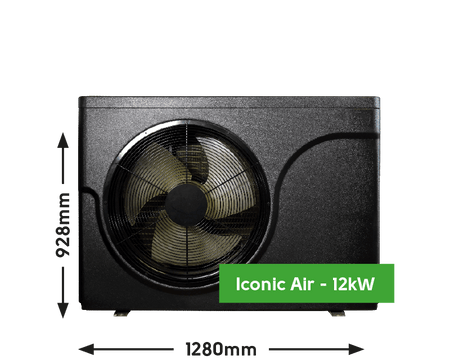

Width (mm)	1165	1280	1240	416
Height (mm)	795	928	1329	709
Depth (mm)	450	500	540	319
Diameter (mm)	-	-	-	-
Weight (kg)	90	132	160	29

Details

• Type Air Source Heat Pumps
• Vendor EHC
• SKU AHP-IA12KW-KIT
