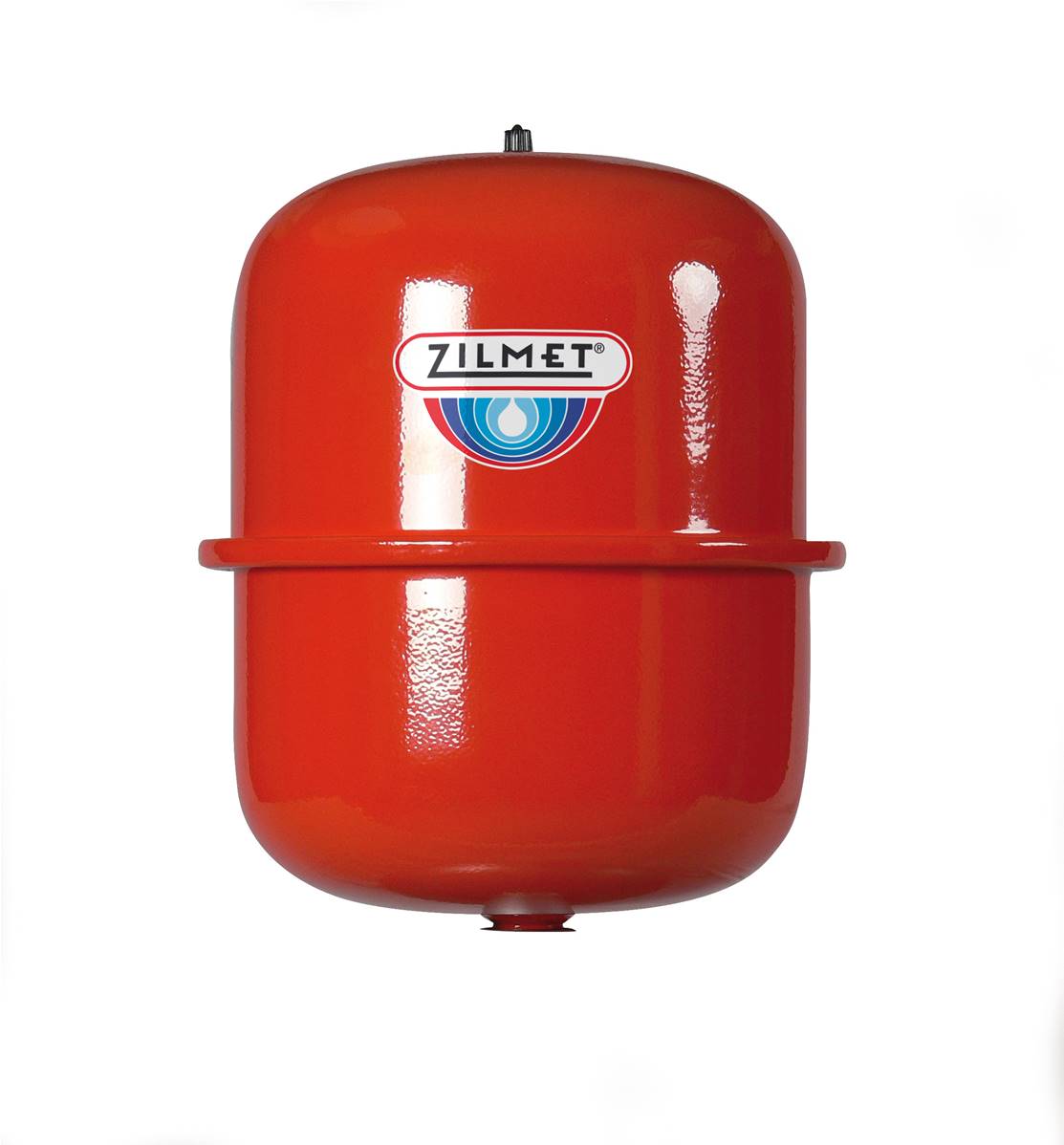

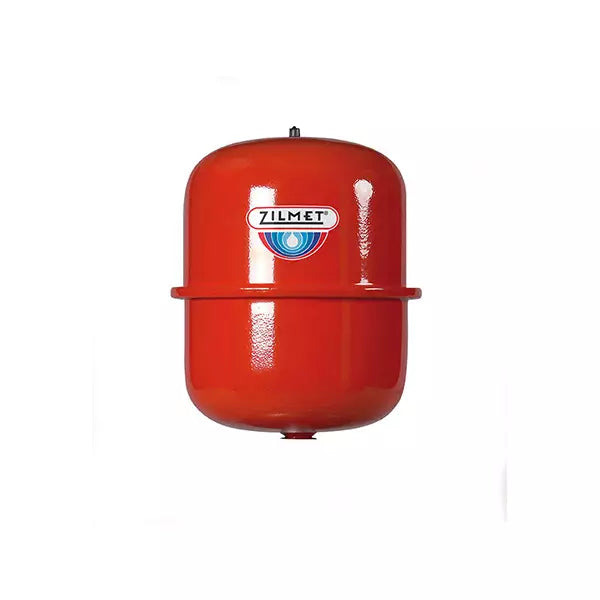

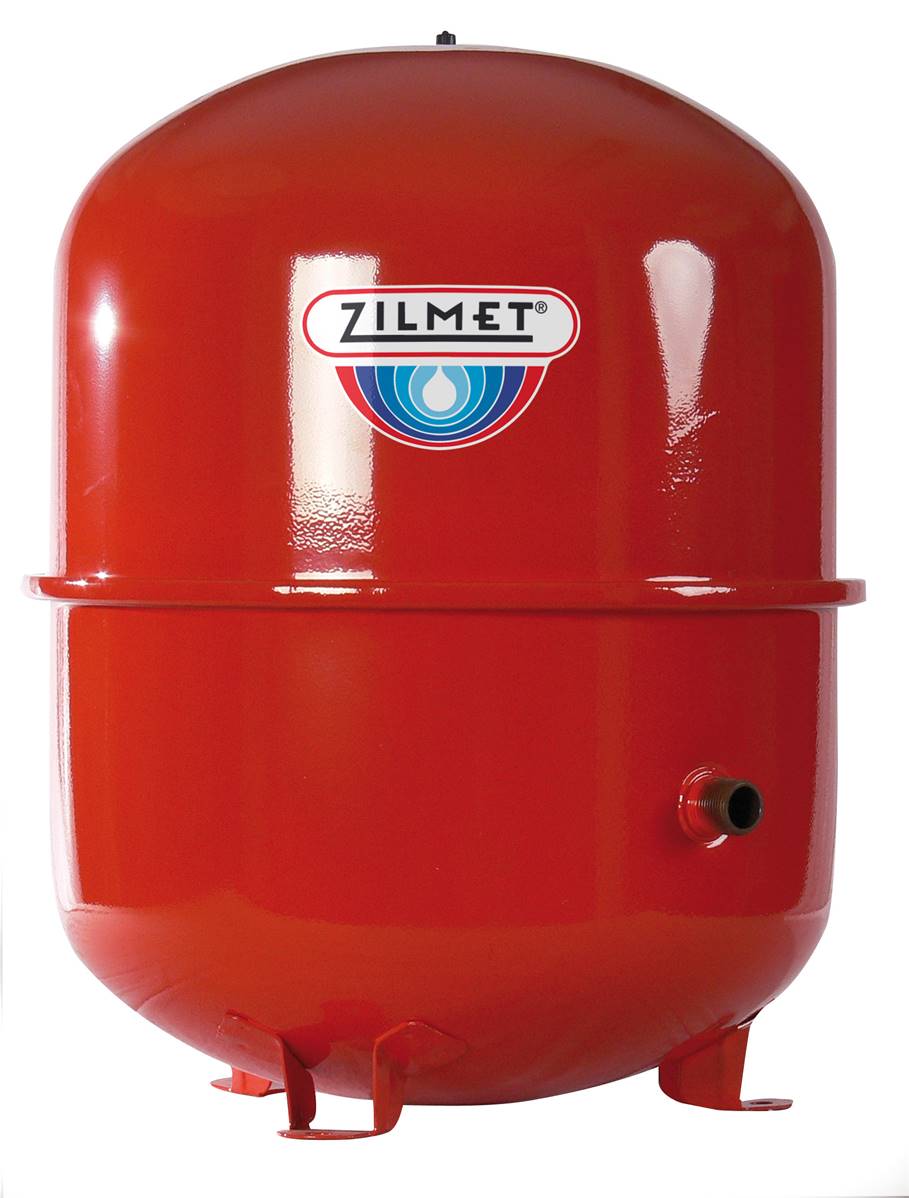

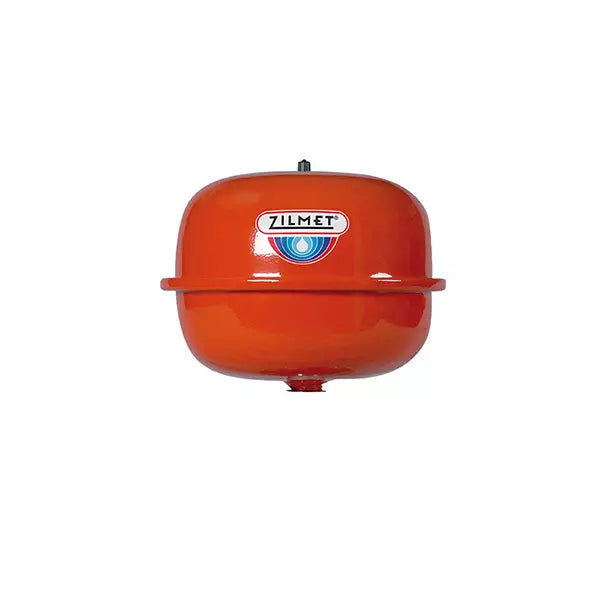

The Zilmet Cal-Pro Expansion Vessel is a robust, maintenance-free solution designed to manage thermal expansion in closed-loop heating systems. By absorbing excess pressure caused by heated water, it protects boilers, pipes, and radiators from damage, ensuring efficient and reliable operation.
Key Specifications
-

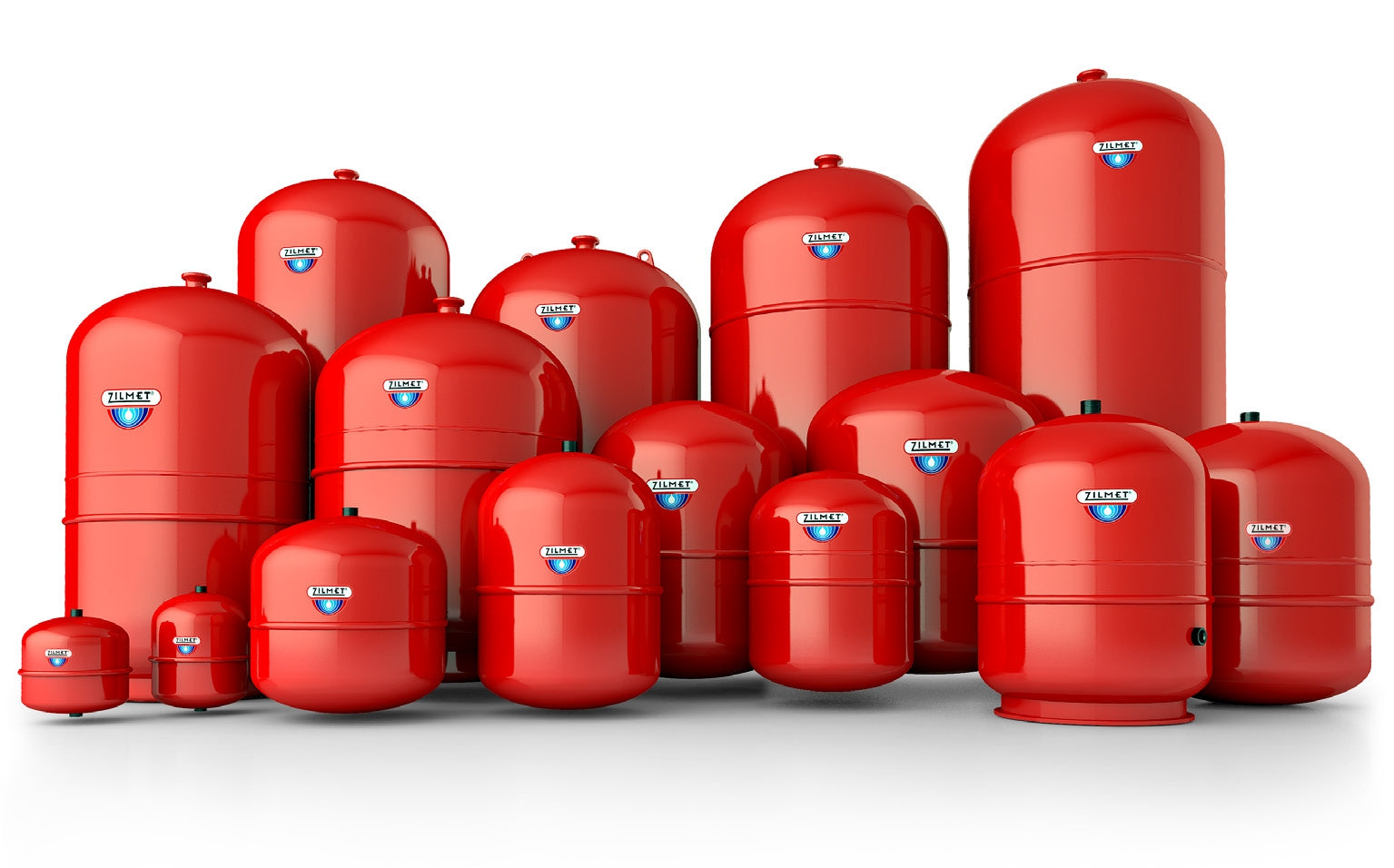

Capacity Range: 8–35 litres (suitable for small domestic to light commercial systems).
-
Maximum Working Pressure: 10 bar / 145 psi.
-
Factory Pre-Charge Pressure: 1.5 bar / 22 psi (adjustable for system requirements).
-
Maximum Temperature: 100°C / 212°F.
-
Connection Size: 1" BSP female thread (standard for UK heating systems).
-
Diaphragm Material: High-grade nitrile rubber (resistant to wear and corrosion).
-
Shell Material: Carbon steel with epoxy-coated finish for durability.
Features & Benefits
-
Pressure Stabilisation: Prevents pressure spikes in heating systems, extending equipment lifespan.
-
Compact Design: Space-saving and easy to install in boiler rooms or compact spaces.
-
Adjustable Pre-Charge: Customisable to match system static pressure.
-
Corrosion-Resistant: Epoxy coating protects against rust in damp environments.
-
Compliance: Meets UK and EU standards for heating system components.
Typical Applications
-
Domestic and commercial boiler systems.
-
Underfloor heating circuits.
-
Solar thermal installations.
Installation Notes
-
Mount vertically to optimise diaphragm performance.
-
Ensure pre-charge pressure matches system static pressure before installation.
-
Consult a Gas Safe registered engineer for compliance with UK building regulations.
- Type Expansion Vessel for Heating Systems
- Vendor Zilmet
- SKU EVP4
